CyberPower Systems

CyberPower Systems Power Distribution Unit - PDU24302

CyberPower Systems Power Distribution Unit - PDU24302

Regular price $1,059.00 AUD
Regular price Sale price $1,059.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
Product Description

Ideal for protecting: Server Room, Data Centre, Security Systems, Surveillance Systems, Telephony Devices, Networking Devices, Storage Devices, Satellite Devices, Multimedia Devices, Workstations

CyberPower Systems Power Distribution Unit - PDU24302, provides output from a UPS unit, generator, or utility power to multiple connected devices in IT environments.  Dual power cords can be plugged into separate power sources to provide redundancy to single-corded connected equipment.  If the selected power source exceeds the desired thresholds or fails, the ATS PDU will automatically switch to the other power source within 10ms (Source Failure Detection Time: 2-3ms. Power Source Transfer Time: 2-7ms) to ensure continuous operation.

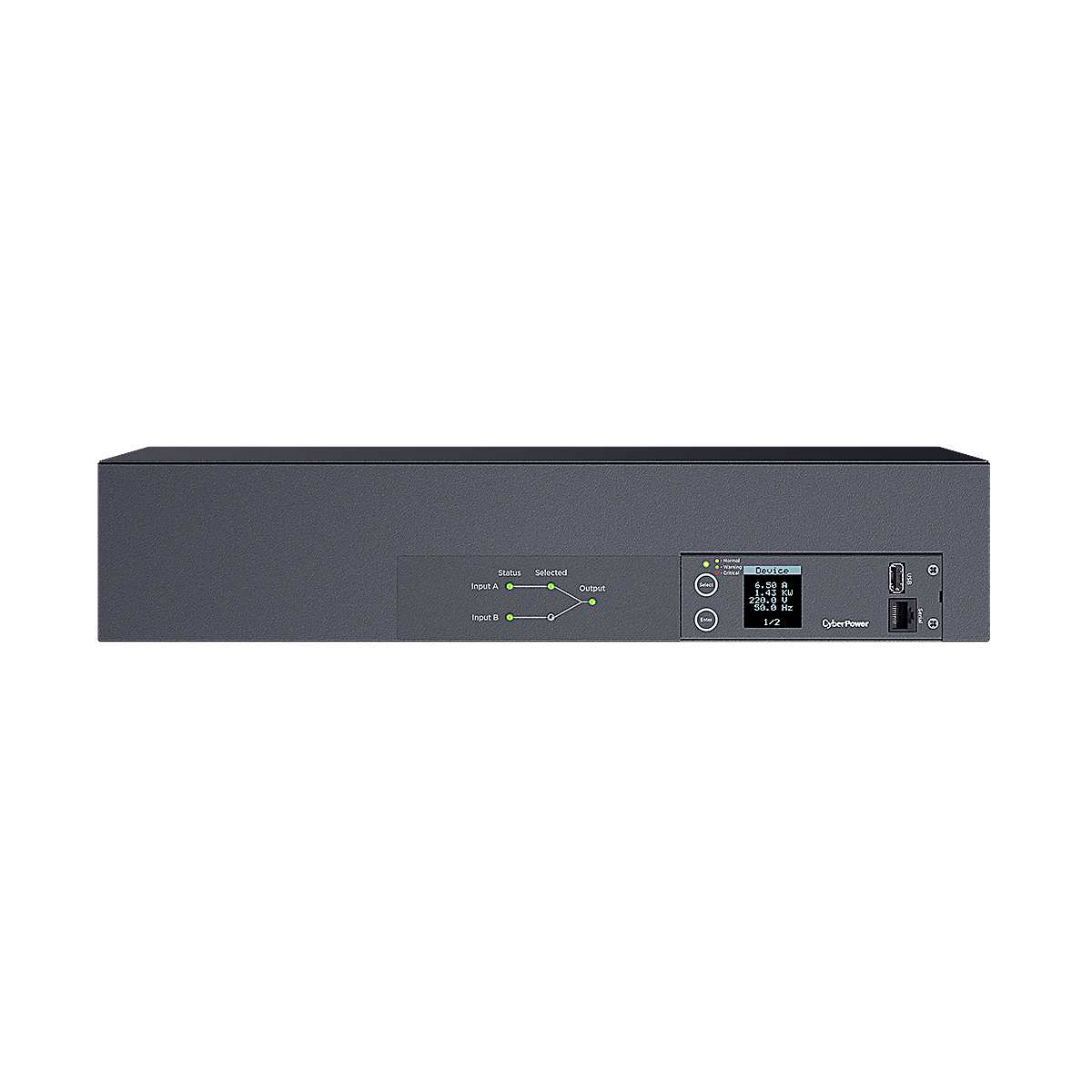

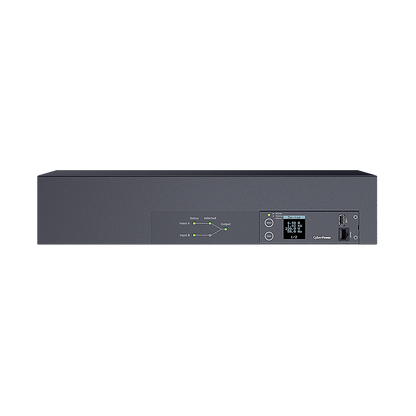

The unit comes with a hot-swappable multifunction readout that displays real-time vitals including current, input voltage, power consumption levels in amps and watts. The digital LCD display is also colour configurable, allowing easy maintenance and monitoring of the ATS PDU. Users can change LCD's colours to easily categorise devices between multiple machines in server room and IT environments. The firmware can also be conveniently upgraded via the USB port, ensuring the latest features and updates are available for users.

The product can be connected to a PC through the serial port to perform local control of the ATS PDU.

Technology: Power Distribution Unit
Voltage: 240Vac
Configuration: Metered


Technical Specifications


Output Voltage (V) Depends on Input

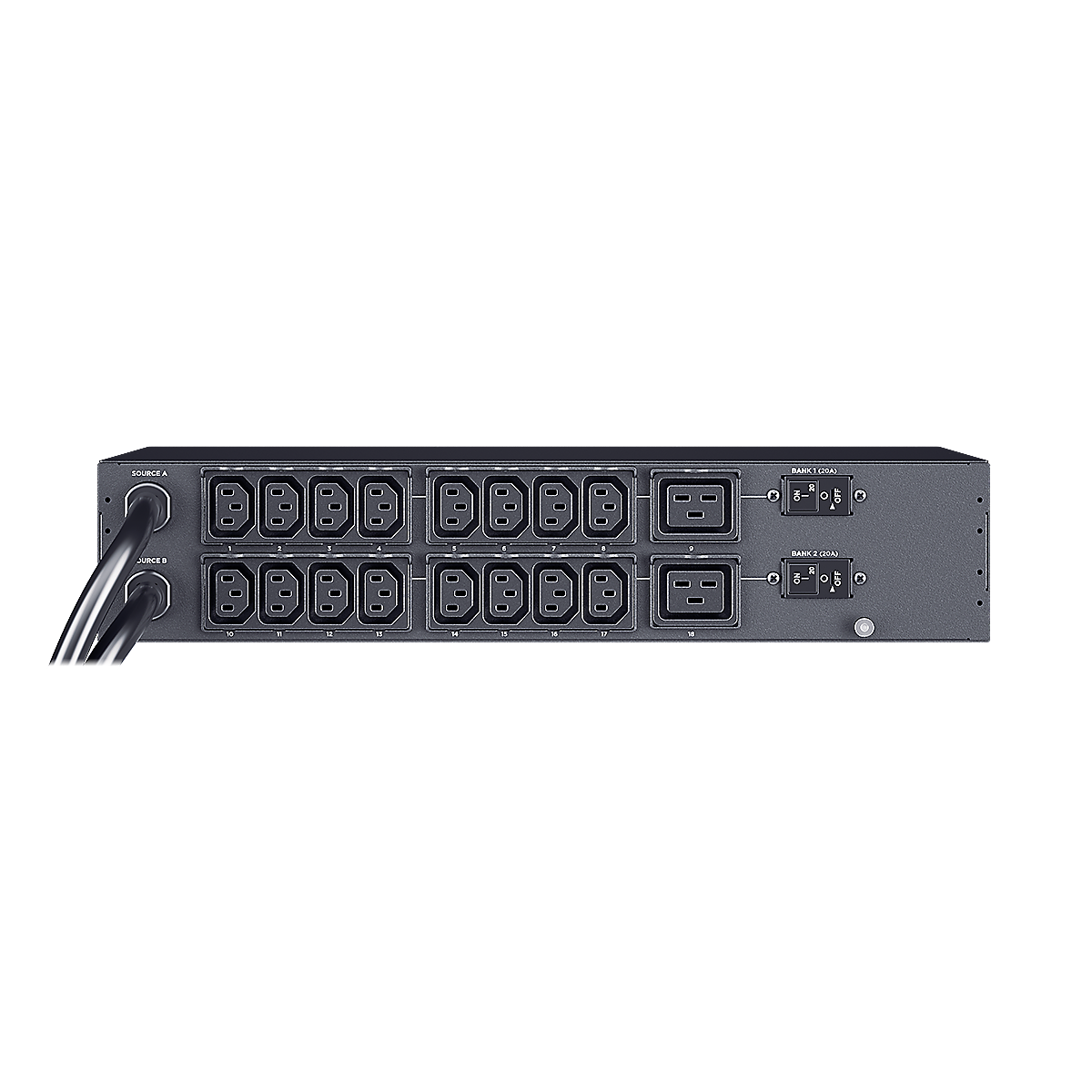

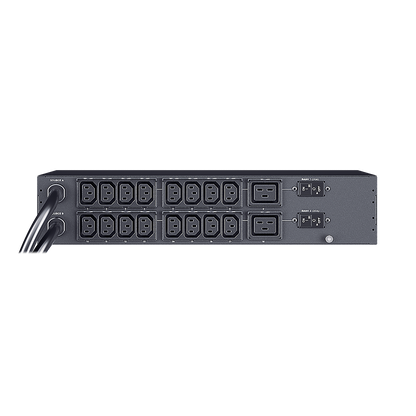

Outlets - # of Bank(s) (Bank) 2
Outlet(s) - Total 18
Outlet(s) - Rear 18
Outlet Type

(16) x IEC C13

(2) x IEC C19


Dual Power Inputs Yes
Nominal Input Voltage (Vac) 200 - 240
Input Frequency (Hz) 50/60
Maximum Input Current (A) 32
Input Connector Type (2) x IEC 60309 32A


Height 8.8 cm
Width 43.3 cm
Depth 21.5 cm
Rack Height (U) 2
Weight 7.4 kg
Colour Black
