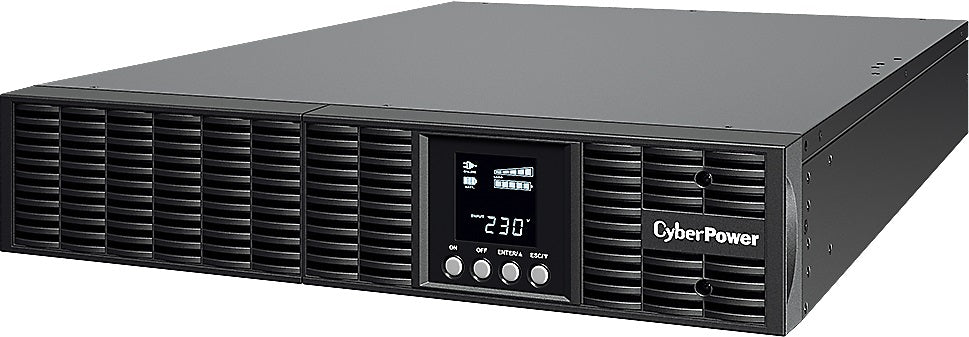

CyberPower Systems Online S Series 3000VA Double Conversion Rackmount UPS
CyberPower Systems Online S Series 3000VA Double Conversion Rackmount UPS
Couldn't load pickup availability
Product Description
Ideal for protecting: Computers and peripherals, Server Room, Data Centre, Supermarket, Factory, Airport, Train Station, Security Systems, Surveillance Systems, Networking Devices, NAS/Storage Devices and Telecom Devices
CyberPower Systems Online S Series 3000VA Double Conversion Rackmount UPS is a high performance UPS featuring online double conversion topology, which provides seamless Pure Sinewave power for mission critical devices such as NAS and servers, DVRs/surveillance systems, transportation, infrastructure and emergency systems. It's typically integrated in the back office, server room and data centre environment.

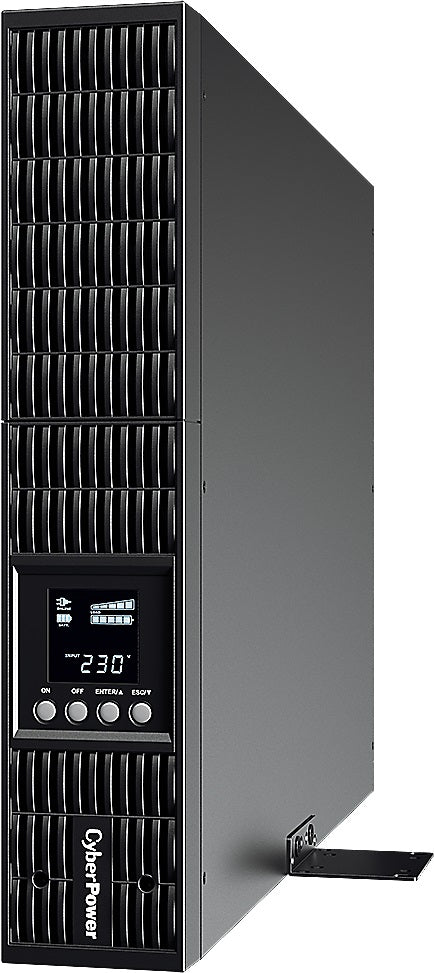

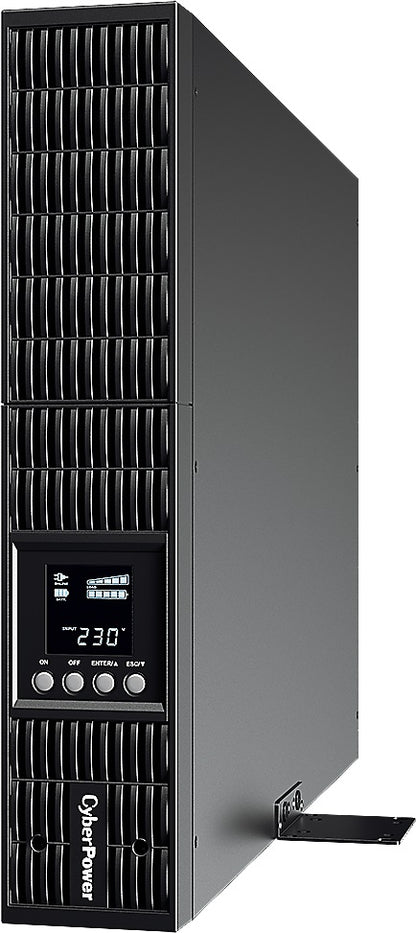

Numerous engineering excellences showcase in this enterprise level application including Economy Mode, Smart Battery Management and External Battery Module compatible, which further enhance its overall performance and capability. The placement-wise design could be configured in either Tower (T) or Rackmount (RM) form with the attached stands and skids to make the most of your workspace.
The optional SNMP/HTTP Remote Management Capability enables remote management and control of the system through standard web browser. Together with the PowerPanel Business Edition management software, the UPS can provide administrators comprehensive network power management including unattended-shutdown, event logging, reporting, and notifications.
| Technology: | Online S Series |
| Rating: | 3000VA |
| Voltage: | 230Vac |
| Configuration: | Rackmount |
Technical Specifications
Output
| Capacity (VA) | 3000 |
| Capacity (Watts) | 2700 |
| On Battery Waveform | Pure Sinewave |
| On Battery Voltage (Vac) | 208 +/- 1%, 220 +/- 1%, 230 +/- 1%, 240 +/- 1% |
| On Battery Frequency (Hz) | 50/60 +/- 0.5% |

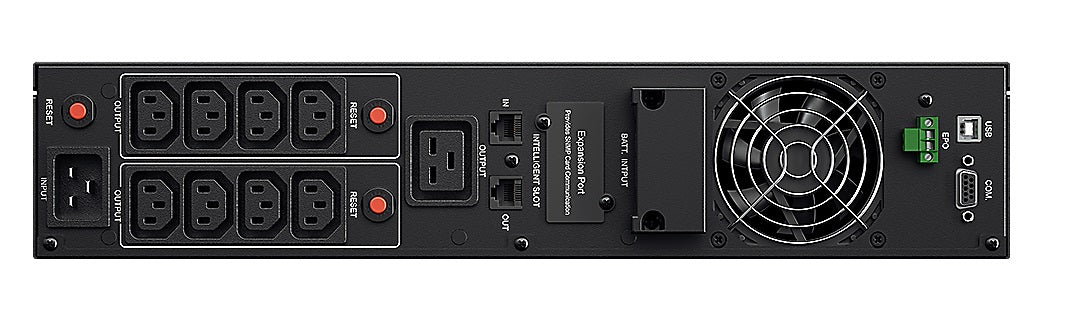

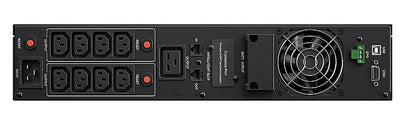

| Outlet Type |
(8) x IEC C13 (1) x IEC C19 |
| Internal Bypass |
Automatic Bypass, Manual Bypass |
| Typical Transfer Time (ms) |
0 |
Input
| Nominal Input Voltage (Vac) | 230 |
| Input Voltage Range (Vac) | 190 - 300 |
| Input Frequency (Hz) | 50/60 +/- 10 |
| Input Frequency Detection | Auto Sensing |
| Rated Input Current (A) | 13 |
Batteries & Runtime
| Runtime at Half Load (min) | 11 |
| Runtime at Full Load (min) | 4 |
| Typical Recharge Time (Hours) | 4 |
| Battery Type | Sealed Lead-Acid |
| Single Battery Capacity (AH) | 12V 9AH |
| User Replaceable | Yes - Qualified Personnel Only |
| Extended Battery Module (EBM) | BPSE72V40ART2U |
| Max EBM Quantity (pcs) | 3 |
Physical
| Height | 8.8 cm |
| Width | 43.8 cm |
| Depth | 61 cm |
| Weight | 27.6 kg |
| Installed Rack Height (U) | 2 |
| Colour | Black |
