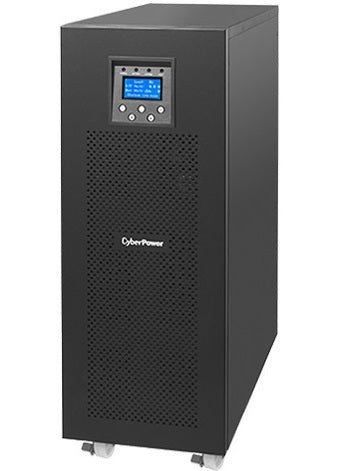

CyberPower Systems Online S Series 10000VA Double Conversion Tower UPS with LCD
CyberPower Systems Online S Series 10000VA Double Conversion Tower UPS with LCD
Couldn't load pickup availability
Product Description
Ideal for protecting: Computers and peripherals, Broadband Modems (internet and TV), IP Telephony Equipment, POS Equipment, Medical Vaccine and Lab Fridges
CyberPower Systems Online S Series 10000VA Double Conversion Tower UPS with LCD is ideal for servers, networking equipment, workstations and other mission critical applications which require pure sine wave power. Featuring Online Double Conversion Topology and Zero Transfer Time, the UPS provides consistent and seamless power to critical loads.
Numerous engineering excellences showcase in this enterprise level application including Economy Mode, Smart Battery Management and External Battery Module compatible, which further enhance its overall performance and capability. The placement-wise design could be configured in either Tower (T) or Rackmount (RM) form with the attached stands and skids to make the most of your workspace.
The optional SNMP/HTTP Remote Management Capability enables remote management and control of the system through standard web browser. Together with the PowerPanel Business Edition management software, the UPS can provide administrators comprehensive network power management including unattended-shutdown, event logging, reporting, and notifications.
| Technology: | Online S Series |
| Rating: | 10000VA |
| Voltage: | 230Vac |
| Configuration: | Tower or Rackmount |
Technical Specifications
Output
| Capacity (VA) | 10000 |
| Capacity (Watts) | 9000 |
| On Battery Waveform | Pure Sinewave |
| On Battery Voltage (Vac) | 208 +/- 2%, 220 +/- 2%, 230 +/- 2%, 240 +/- 2% |
| On Battery Frequency (Hz) | 50/60 +/- 0.1% |
| Outlet Type |
(1) x Hardwire Terminal Block |
| Internal Bypass |
Automatic Bypass, Manual Bypass |
| Typical Transfer Time (ms) |
0 |
Input
| Nominal Input Voltage (Vac) | 230 |
| Input Voltage Range (Vac) | 110 - 276 |
| Input Frequency (Hz) | 50 +/- 5, 60 +/- 6 |
| Input Frequency Detection | Auto Sensing |
| Rated Input Current (A) | 45.5 |
Batteries & Runtime
| Runtime at Half Load (min) | 11 |
| Runtime at Full Load (min) | 4 |
| Typical Recharge Time (Hours) | 7 |
| Battery Type | Sealed Lead-Acid |
| Single Battery Capacity (AH) | 12V 9AH |
| User Replaceable | No |
| Extended Battery Module (EBM) | BPSE240V47AOA |
| Max EBM Quantity (pcs) | 15 |
Physical
| Height | 70.8 cm |
| Width | 26.0 cm |
| Depth | 55.0 cm |
| Weight | 86 kg |
| Colour | Black |
