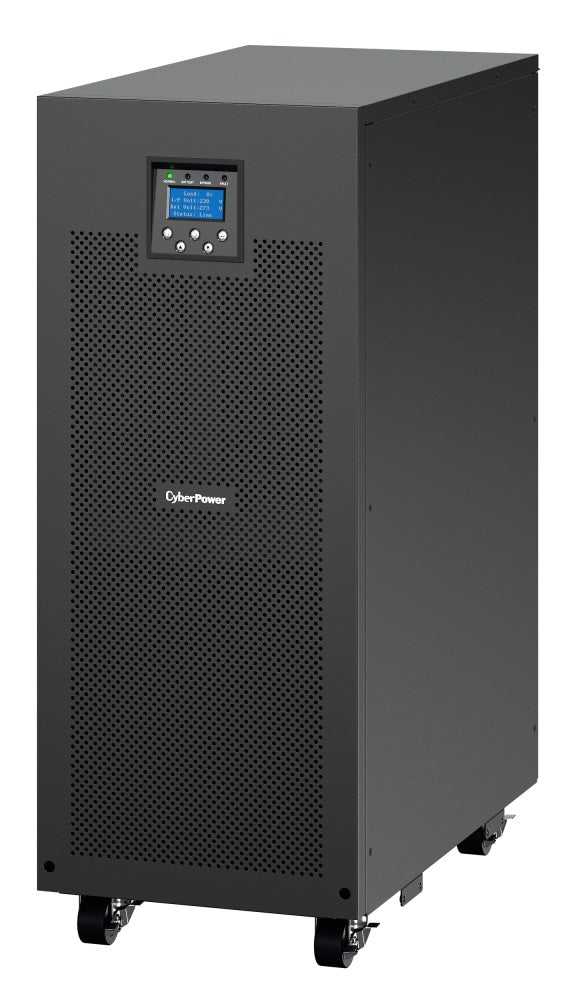

CyberPower Systems Online S 3-Phase 15KVA Double Conversion UPS
CyberPower Systems Online S 3-Phase 15KVA Double Conversion UPS
Couldn't load pickup availability
Product Description
*This is a special order item. Please email us at info@criticalpowersolutions.com.au for pricing and availability.*
Ideal for protecting: Corporate Data Centre, Networking, Servers, Workstations, Medium Business, Industrial Equipment
CyberPower Systems Online S 3-Phase 15KVA Double Conversion UPS, featuring Online Double Conversion UPS topology, the Online S (3-Phase) Series keeps transforming the 3-Phase input power into 1-Phase output with quality power supply and provides the highest level of power protection to demanding businesses who value versatility, flexibility, manageability and performance.
Numerous engineering excellences showcase in this enterprise level application including Economy Mode, Parallel Design and Smart Battery Management, which further enhance its overall performance and capability for better operating efficiency. With the perfect zero transfer time, the Online S Series ensures continuous and seamless pure sine wave power to all mission critical devices.
The optional SNMP/HTTP Remote Management Capability enables remote management and control of the system through standard web browser. Together with the PowerPanel Business Edition management software, users can perform comprehensive power management including unattended shutdown, event logging, reporting and notifications.
| Technology: | Online S (3-Phase) Series |
| Rating: | 15000VA |
| Voltage: | 240Vac |
| Configuration: | Tower |
Technical Specifications
Output
| Capacity (VA) | 15000 |
| Capacity (Watts) | 13500 |
| On Battery Waveform | Pure Sinewave |
| On Battery Voltage (Vac) | 208/220/230/240 +/- 1% (Configurable) |
| On Battery Frequency (Hz) | 50/60 +/- 0.1% (Configurable) |
| Outlet Type |
(1) x Hardwire Terminal Block |
| Harmonic Distortion |
THD < 2% at Linear Load, > 5% at Non-Linear Load |
| Typical Transfer Time (ms) |
0 |
Input
| Dual Power Inputs |
Yes |
| Generator Compatability |
Yes |
| Input Voltage (Vac) |
Line to Neutral (L-N): 220 - 240 Line to Line (L-L): 390 - 415 |
| Input Voltage Range (Vac) |
Line to Neutral (L-N): 176 - 276 Line to Line (L-L): 305 - 478 |
| Input Frequency (Hz) | 50 +/- 5, 60 +/- 6 (Auto Sensing) |
| Rated Input Current | 68.2A |
| Input Power Factor | 0.99 |
| Input Connector Type | Hardwired Terminal Block |
Batteries & Runtime
| Runtime at Half Load (min) | 17.6 |
| Runtime at Full Load (min) | 6.4 |
| Typical Recharge Time (Hours) | 8 |
| Battery Type | Sealed Lead-Acid |
| Smart Battery Management (SBM) Mode | Yes |
| User Replaceable | No |
| Extended Battery Module (EBM) | BPSE240V82A |
| Max EBM Quantity | 15 |
Physical
| Height | 89.0 cm |
| Width | 35.0 cm |
| Depth | 65.0 cm |
| Weight | 172 kg |
| Colour | Black |
