CyberPower Systems

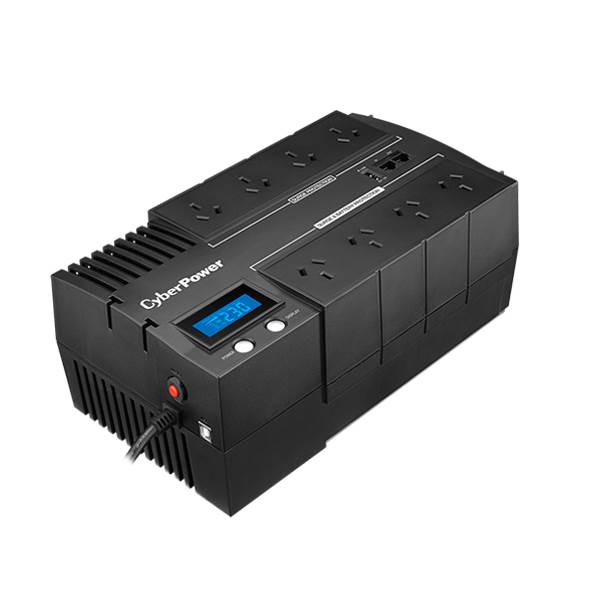

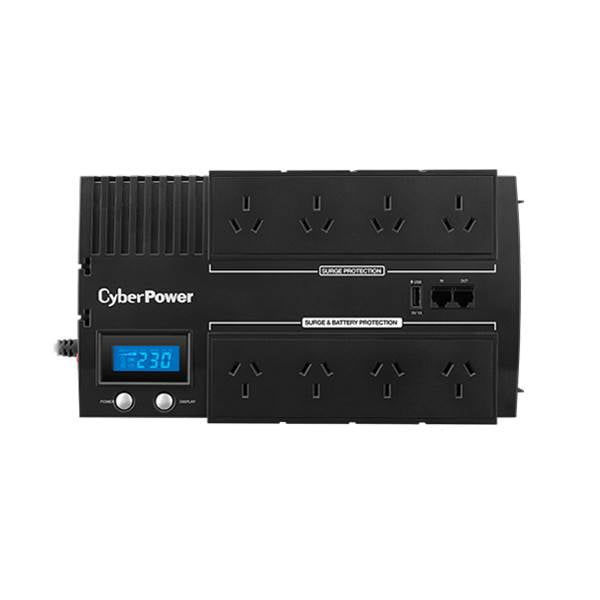

CyberPower Systems BRIC LCD Series 1200VA Line Interactive Power Board Style UPS

BR1200ELCD

Regular price
$335.00
Regular price
Sale price
$335.00
Tax included. Shipping calculated at checkout.

CyberPower Systems BRIC LCD Series 1200VA Line Interactive Power Board Style UPS offers home and small office users clean and stable battery backup while the feature RJ11/RJ45 port ensures phone, fax and modem lines are protected from surges. With Automatic Voltage Regulation (AVR) stabilises the AC signal and maintains a safe voltage, this allows the UPS to maintain safe power levels for the connected equipment without resorting to battery power. The multifunction LCD readout provides immediate access to precise information of critical power/battery condition. For convenient mounting, these units can be installed in either a horizontal or wall-mounted placement to make the most of your space.

The included PowerPanel Personal Edition management software showcases the feature rich abilities such as input/output power voltage readings, self-diagnostics, and approximate battery backup time. With the Energy Saving Technology, the BRIC's LCD Series UPS can save up to 75% of electricity therefore save your electricity expenses.

Ideal for Protecting - Computers and peripherals, Broadband Modems (internet and TV), IP Telephony Equipment, POS Equipment

Technical Specifications

Technology: BRIC

Rating: 700 / 850 / 1000 / 1200VA

Voltage: 240Vac

Configuration: Powerboard Style

Output

  • Output Power Capacity: 1200VA
  • Max Configurable Power (Watts): 720
  • Nominal Output Voltage: 230V
  • On Battery Frequency (Hz): 50/60 +/- 1%
  • Automatic Voltage Regulation (AVR): Single Boost, Single Buck
  • Overload Protection: Circuit Breaker
  • Topology: Line Interactive
  • Waveform Type: Simulated Sinewave
  • Outlet(s) - Total: 8
  • Outlet Type: AU x 8
  • Outlet(s) - Battery & Surge Protected: 4
  • Outlet(s) - Surge-Only Protected: 4
  • USB Charging Port(s): 1
  • USB Charging Current (A): 1
  • Typical Transfer Time (ms): 4

Input

  • Nominal Input Voltage: 230V
  • Input Frequency: 50/60 Hz +/- 5 Hz
  • Input Frequency Detection: Auto Sensing
  • Rated Input Current (A): 5.45
  • Input Connector Type: AU
  • Power Cord Length (m): 1.5

Batteries & Runtime

  • Battery Type: Sealed Lead-Acid battery
  • Typical Recharge Time: 8 hour(s)
  • Replacement Battery: RBP0063
  • RBP Quantity: 1
  • Runtime at Half Load (min): 9
  • Runtime at Full Load (mins): 2
  • Start On Battery: Yes
  • User-Replaceable: Yes

Communications & Management

  • LCD Panel: Yes
  • LCD Information Display: Power Status, Battery Status, Load Status, Other Information
  • LCD Setting & Control: Alarm Setting
  • Audible Alarms: Battery Mode, Low Battery, Overload, UPS Fault

Surge Protection and Filtering

  • Surge Energy Rating: 150 Joules
  • EMI/RFI Filteration: Yes
  • Phone/Network Protection RJ11/RJ45 (Combo)1 in, 1 out

Dimensions

Height - 11.8 cm
Width - 16.6 cm
Depth - 28.8 cm
Weight - 8.2 kg
