CyberPower Systems

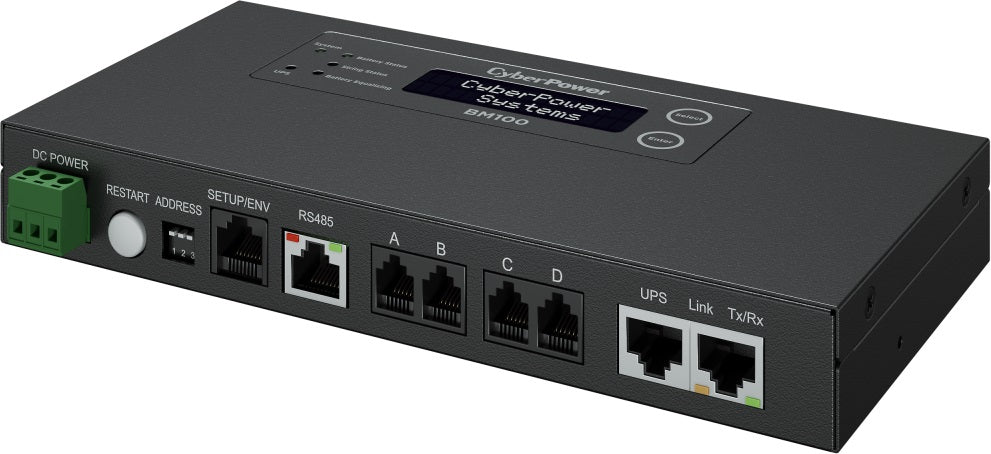

CyberPower Battery Management System - Battery Manager

CyberPower Battery Management System - Battery Manager

Regular price $529.00 AUD
Regular price Sale price $529.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
Product Description

CyberPower Battery Management System - Battery Manager is part of a management system, which consists of Battery Manager and Battery Probes. The system provides a proactive approach to manage and monitor the battery system, eliminating the risk of downtime by ensuring the UPS batteries are optimally charged and ready for use. The system can detect the flawed battery early to reduce the possibility of damage to the entire battery string, thus extending the battery lifespan and delivering a reduced cost of maintenance.

The battery management system can monitor up to several strings of batteries and equalize each battery's voltage, which enhances battery performance. After installing the hardware and configure an IP address, users can simply monitor the battery voltage, temperature and internal resistance through the user friendly web interface.

The battery management system can support Environmental Sensor and user upgradeable firmware. The battery management system is fully Ethernet TCP/IP compatible with integrated web server and supports SNMP/MIB communication, data record, alarm notification and more. The system can also operate under wide temperature range.

Technical Specifications


Input DC Voltage Range (Vdc) 15 - 60
Power Consumption (W) 4
Number of Monitored Strings (PCS) 4
Number of Sting Batteries (PCS) 50
Number of Monitored Batteries (PCS) 200

Management & Communications

LCD Panel Yes
LED Indicators System, UPS, Battery Status, String Status, Battery Equalizing
Connection ports to Battery Probes Yes - via RJ25
Network Port RJ45 - 10/100Mbps Ethernet
Supported Protocols IPv4, TCP/IP, UDP, SNMPv1, HTTP, NTP, DNS, Telnet, DHCP, SMTP, FTP, IPv6, SNMPv3, HTTPs, SSH, SSL, TLS
User-upgradeable Firmware Yes
Environmental Sensor Supported Yes
BMS Software Supported Yes


Height 2.9 cm
Width 21 cm
Depth 10 cm
Weight 0.573 kg
Colour Black
