APC Smart UPS VT 10kVA 3 Phase UPS

SUVTP10KH1B4S

Regular price
$0.00
Regular price
Sale price
$0.00
Tax included. Shipping calculated at checkout.

*This is a special order item. For extended run times, pricing and availability, please email us at info@criticalpowersolutions.com.au*

APC Smart-UPS VT 10kVA 400V w/1 Batt Mod Exp to 4, Start-Up 5X8, Int Maint Bypass, Parallel Capable

APC Smart UPS VT 10kVA 3 Phase UPS offers centralized three phase power protection with the reliability of the award winning Smart-UPS family. Ideal for small data centres, large retail stores, regional offices and dense power requirements, the Smart-UPS VT includes dual mains input, automatic and maintenance bypasses, and scalable runtime with swappable batteries for increased availability.  The rack-mounted version maximises valuable floor space by incorporating UPS, power distribution and additional battery capacity in a single rack.  Low cost ownership is achieved through best in class efficiency and a reduction in rating of electrical infrastructure - wires, transformers and generators - due to the Smart-UPS VT Soft Start feature.

The APC by Schneider Electric Network Management Card with temperature monitoring provides remote monitoring and management through a simple Web/SNMP interface and allows integration with StruxureWare.  Serviceability is greatly enhanced by user-replaceable batteries, manageable extended run frames, included start up and standard on-site warranty services.  All these features make the Smart-UPS VT the easiest UPS in its class to deploy, manage and maintain.

Data Centres, Retail Stores, Regional Offices

Technical Specifications

Technology: Smart-UPS VT

Rating: 10/15/20/30/40 kVA

Configuration: Tower

Output

  • Nominal Output Voltage (V): 400V 3PH
  • Output Voltage Note: Configurable for 380 : 400 or 415V 3 Phase nominal output voltage
  • Efficiency at Full Load: 95.2%
  • Output Voltage Distortion: Less than 5% at full load
  • Output Frequency (sync to mains): 47 - 53 Hz for 50 Hz nominal
  • Output Frequency (not synced): 50Hz +/- 0.1% for 50 Hz
  • Load Crest Factor: 3 : 1
  • Maximum Output Current: 16
  • Bypass: Built-in Maintenance Bypass, Built-in Static Bypass

Input

  • Nominal Input Voltage (V): 400V 3PH
  • Input Frequency (Hz): 40 - 70 Hz (auto sensing)
  • Input Connections: Hard wire 5-wire (3PH + N + G)
  • Input Voltage Range for Mains Operations: 304 - 477V
  • Efficiency at Full Load: 95.2%
  • Maximum Input Current: 14.0A
  • Input Power Factor at Full Load: 0.98

Communications & Management

  • Interface Port(s): DB-9 RS-232, Smart-Slot
  • Pre-Installed SmartSlot Cards: AP9631
  • Control Panel: Multi-function LCD status and control console
  • Emergency Power Off: Yes
  • Audible Alarm: Audible and visible alarms prioritized by severity

Batteries & Runtime

  • Battery Type: VRLA
  • Included Battery Modules: 1
  • Typical Recharge Time: 5 Hour(s)
  • Nominal Battery Voltage: +/- 192V (split battery referenced to neutral)
  • Battery Slots Empty: 3
  • Expected Battery Life (years): 3 - 5
Dimensions

Height - 149.0 cm
Width - 52.3 cm
Depth - 84.2 cm
Weight - 323.18 kg

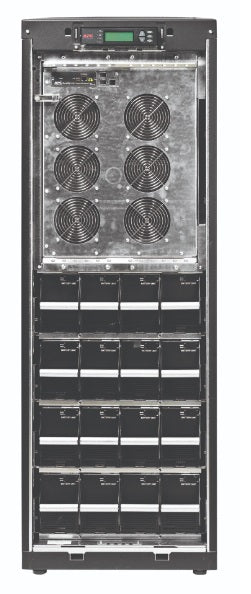

APC Smart UPS VT 10kVA 3 Phase UPS

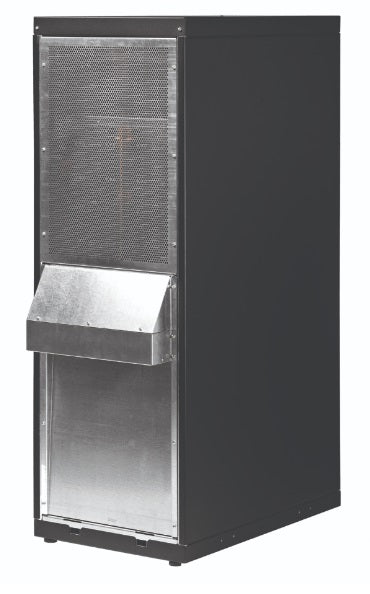

APC Smart UPS VT 10kVA 3 Phase UPS
