APC by Schneider Electric

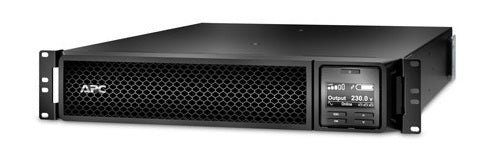

APC Smart UPS (SRT) 2200VA Rack Mount

APC Smart UPS (SRT) 2200VA Rack Mount

Regular price $3,900.00 AUD
Regular price Sale price $3,900.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
Product Description

Ideal for protecting: Network Devices, Servers, Switches, Storage Devices, Computers and peripherals, POS Equipment

APC Smart UPS (SRT) 2200VA Rack Mount provides high density, double conversion, online power protection for servers, voice/data networks, medical labs and light industrial applications. The Smart-UPS Online is capable of supporting loads from 2.2kVa - 10kVa in a rack/tower convertible chassis. The 6kVA, 8kVa and 10kVa models feature unity output power factor enabling them to support power hungry blade servers or heavily loaded equipment racks. When business critical systems require runtime in hours, not minutes, Smart-UPS Online can be configured with multiple battery packs to meet agressive runtime demands.

The included PowerChute Network Shutdown management software provides unattended graceful shutdown of network operating systems. Models 5kVa to 10kVa include an integrated network management card for remote management. The entire Smart-UPS Online family provides vale to customers with demanding power conditions, including a very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.

Technology: Smart-UPS Online
Rating: 2200 / 3000 / 5000 / 10000VA
Voltage: 230Vac
Configuration: Tower and Rack Mount
SNMP Card: Network Management Card 2


Technical Specifications


Output Power Capacity 1.98 KWatts / 2.2kVA
Max Configurable Power (watts) 1.98 KWatts / 2.2kVA
Nominal Output Voltage 230V
Output Voltage Distortion Less than 2%
Output Frequency (sync to mains) 50/60 Hz +/- 3 Hz
Other Output Voltages 220, 240
Load Crest Factor 3 : 1
Topology Double Conversion Online
Waveform Type Sinewave
Output Connections

(8) IEC 320 C13 (Battery Backup)

(2) IEC 320 C19 (Battery Backup)

(2) IEC Jumpers (Battery Backup)

Bypass Built-in Bypass


Nominal Input Voltage 230V
Input Frequency 40 - 70 Hz (auto sensing)
Input Connections IEC-320 C20, Schuko CEE 7 / EU1-16P, British BS1363A
Cord Length 2.44 meters
Input Voltage Range for Mains 160- 275V
Input Voltage Adjustable Range for Mains 100 - 275V (half load)

Batteries & Runtime

Battery Type Maintenance-free sealed Lead-Acid battery with suspended electroylte : leakproof
Typical Recharge Time 3hour(s)
Nominal Battery Voltage 72V
Replacement Battery APCRBC141
Expected Battery Life (years) 3 - 5
RBC Quantity 1
Extendable Run Time 1

Communications & Management

Interface Port(s) RJ-45 Serial, Smart-Slot, USB
Control Panel Multi-function LCD status and control console
Audible Alarm Audible and visible alarms prioritzed by severity
Emergency Power Off (EPO) Yes
Available SmartSlot Interface Quantity 1

Surge Protection and Filtering

Surge Energy Rating 340 Joules
Filtering -


Height 8.5cm
Width 43.2 cm
Depth 58.4 cm
Rack Height 2U
Weight 25.0 kg
Colour Black
