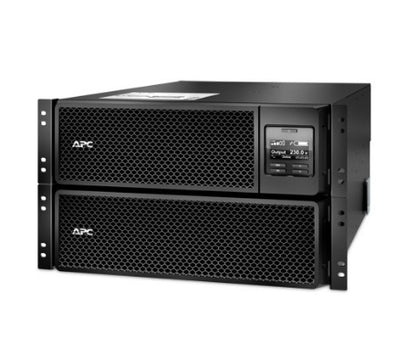

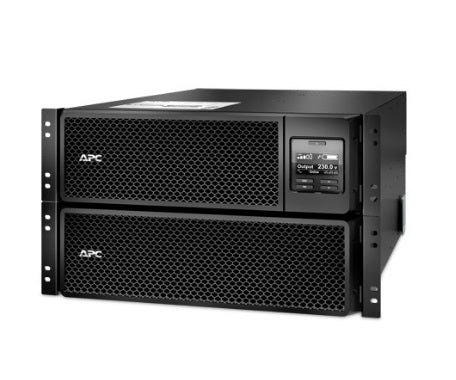

APC Smart UPS (SRT) 10000VA Rack Mount provides high density, double conversion, online power protection for servers, voice/data networks, medical labs and light industrial applications. The Smart-UPS Online is capable of supporting loads from 2.2kVa - 10kVa in a rack/tower convertible chassis. The 6kVA, 8kVa and 10kVa models feature unity output power factor enabling them to support power hungry blade servers or heavily loaded equipment racks. When business critical systems require runtime in hours, not minutes, Smart-UPS Online can be configured with multiple battery packs to meet aggressive runtime demands.
The included PowerChute Network Shutdown management software provides unattended graceful shutdown of network operating systems. Models 5kVa to 10kVa include an integrated network management card for remote management. The entire Smart-UPS Online family provides vale to customers with demanding power conditions, including a very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
Ideal for Protecting - Network Devices, Servers, Switches, Storage Devices, Computers and peripherals, POS Equipment
Technical Specifications
Technology: Smart-UPS Online
Rating: 2200 / 3000 / 5000 / 10000VA
Voltage: 230Vac
Configuration: Tower and Rack Mount
SNMP Card: Network Management Card 2
Output
Output Power Capacity: 10.0 KWatts / 10.0kVA
Max Configurable Power (watts): 10.0 KWatts / 10.0kVA
Nominal Output Voltage: 230V
Output Frequency (sync to mains): 50/60 Hz +/- 3Hz
Other Output Voltages: 220 , 240
Load Crest Factor: 3 : 1
Topology: Double Conversion Online
Waveform Type: Sinewave

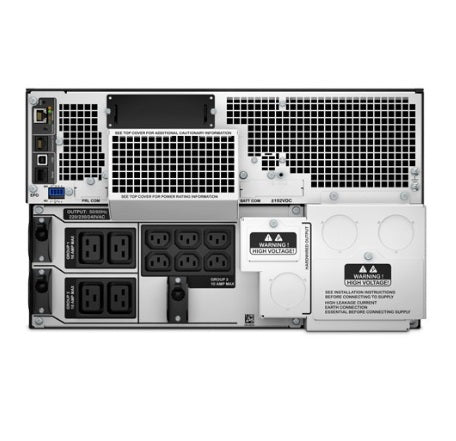

Output Connections:
(6) IEC 320 C13 (Battery Backup)
(3) IEC Jumpers (Battery Backup)
(1) Hard Wire 3-wire (H N + G) (Battery Backup)
(4) IEC 320 C19 (Battery Backup)
Bypass: Internal Bypass (Automatic and Manual)
Input
Nominal Input Voltage: 230V, 400V 3PH
Input Frequency: 40 - 70 Hz (auto sensing)
Input Connections: Hard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH+N+G)
Input Voltage Range for Mains: 160 - 275V
Input Voltage Adjustable Range for Mains: 100 - 275V (half load), 173 - 476V (half load)
