Ideal for protecting: Network Devices, Servers, Switches, Storage Devices, Computers and peripherals, POS Equipment
APC's award wirning Smart-UPS is the most popular UPS in the world for servers, storage and network power protection. Smart-UPS provides availability and manageability to your network allowing you to focus on business growth instead of business downtime. Trusted to protect critical data and equipment from power problems by supplying clean and reliable network grade power. Smart-UPS patent green mode provides extremely high efficiency at low, medium and high load levels making them ideal for multi-core or virtualized servers that have varying load consumption all while saving utility costs. Managed outlet groups allow segmented load control to power on or off your equipment in series as well as load shedding to preserve battery power for critical connected equipment or reboot a hung device without impacting other equipment.
| Technology: | Smart-UPS |
| Rating: | 750 / 1000 / 1500 / 2200 / 3000VA |
| Voltage: | 230Vac |
| Configuration: | Tower and Rack Mount |
| SNMP Card: | Accepts Network Card |
Output
| Max Configurable Power (watts) | 1.0 watts / 1.5kVA |
| Output Voltage Distortion | Less than 5% at full load |
| Output Frequency (sync to mains) | 50/60 Hz +/-3Hz Sync to mains |
| Topology | Line Interactive |
| Waveform Type | Sinewave |

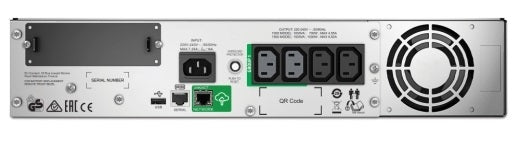

| Output Connections |
(4) IEC 320 C13 (Battery Backup) (2) IEC Jumpers (Battery Backup) |
| Transfer Time | 2ms typical |
Input
| Nominal Input Voltage | 230V |
| Input Frequency | 50/60 Hz +/- 3Hz (auto sensing) |
| Input Connections | IEC-320 C14 |
| Input Voltage Range for Mains | 151 - 302 Adjustable, 160 - 286V |
Batteries & Runtime
| Battery Type | Maintenance-free sealed Lead-Acid battery with suspended electroylte : leakproof |
| Typical Recharge Time | 3hour(s) |
| Replacement Battery | APCRBC159 |
| Expected Battery Life (years) | 3 - 5 |
| RBC Quantity | 1 |
Communications & Management
| Interface Port(s) | RJ-45 Serial, SmartSlot, USB |
| Control Panel | Multi-function LCD status and control console |
| Audible Alarm | Alarm when on battery : distinctive low battery alarm : configurable delays |
| Emergency Power Off (EPO) | Optional |
Surge Protection and Filtering
| Surge Energy Rating | 459 Joules |
| Filtering | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1499 |
Physical
| Height | 8.6 cm |
| Width | 43.2 cm |
| Depth | 47.7 cm |
| Rack Height | 2U |
| Weight | 26.1 kg |
| Colour | Black |
