APC by Schneider Electric

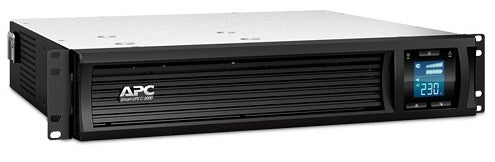

APC Smart UPS C 1000VA 2U Rack Mount with Smart Connect

APC Smart UPS C 1000VA 2U Rack Mount with Smart Connect

Regular price $1,020.00 AUD
Regular price Sale price $1,020.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
Product Description

Ideal for protecting: Network Devices, Servers, Switches, Storage Devices, Computers and peripherals, POS Equipment

APC Smart UPS C 1000VA 2U Rack Mount with Smart Connect, the most affordable true sine wave UPS's in the Smart-UPS family. Designed for entry level servers, it is compatible with today's active power factor corrected (PFC) power supplies. Included PowerChute Business Edition software is compatible with all major server operating systems and provides UPS management and safe system shutdown.

Technology: Smart-UPS C
Rating: 1000 / 1500 / 2000 / 3000VA
Voltage: 230Vac
Configuration: Tower and Rack Mount
SNMP Card: Does not accept Network Card


Technical Specifications


Output Power Capacity 600 watts / 1.0kVA
Max Configurable Power (watts) 600 watts / 1.0kVA
Nominal Output Voltage 230V
Output Voltage Distortion Less than 5% at full load
Output Frequency (sync to mains) 57 - 63 Hz for 60 Hz nominal
Topology Line Interactive
Waveform Type Sinewave

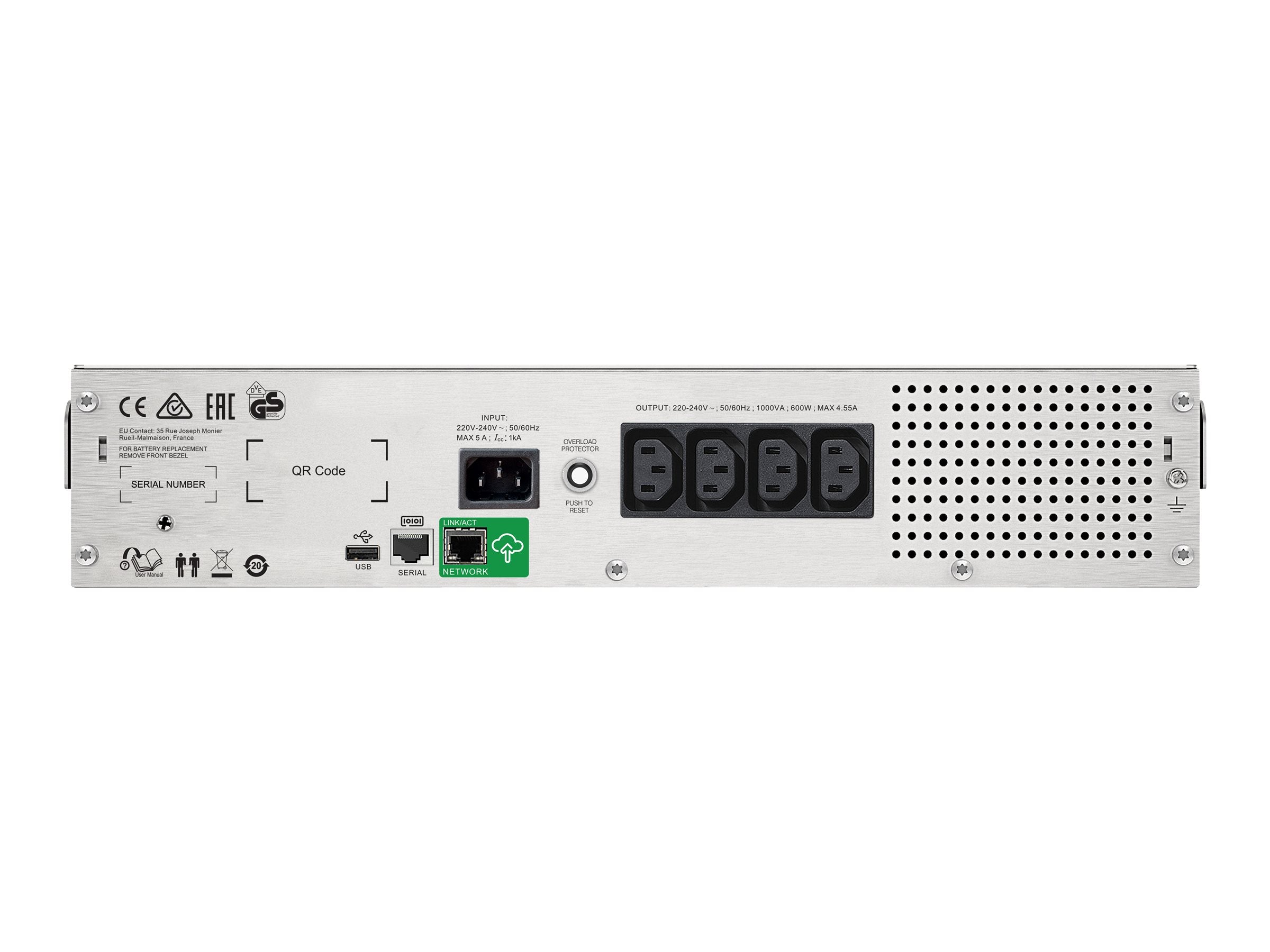

Output Connections

(4) IEC 320 C13 (Battery Backup)

(2) IEC Jumpers (Battery Backup)

Transfer Time 2ms typical


Nominal Input Voltage 230V
Input Frequency 50/60 Hz +/- 3Hz (auto sensing)
Input Connections IEC-320 C14
Input Voltage Range for Mains 180 - 287V

Batteries & Runtime

Battery Type Maintenance-free sealed Lead-Acid battery with suspended electroylte : leakproof
Typical Recharge Time 3hour(s)
Replacement Battery APCRBC124
Expected Battery Life (years) 4 - 6
RBC Quantity 1

Communications & Management

Interface Port(s) USB
Control Panel Multi-function LCD status and control console
Audible Alarm Alarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO) -

Surge Protection and Filtering

Surge Energy Rating 459 Joules
Filtering Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1499


Height 8.9 cm
Width 43.2 cm
Depth 40.6 cm
Rack Height 2U
Weight 20.52 kg
Colour Black
