APC by Schneider Electric

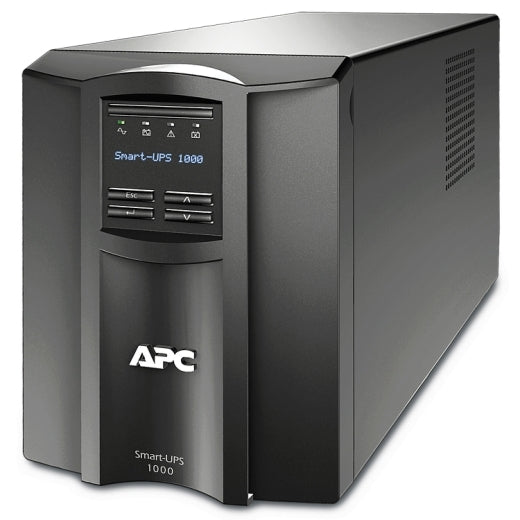

APC Smart UPS 1000VA with Smart Connect
APC Smart UPS 1000VA with Smart Connect
Couldn't load pickup availability
Product Description
Ideal for protecting: Business Telephony, Network Devices, Servers, Switches, Storage Devices, Computers and peripherals
APC Smart UPS 1000VA with Smart Connect is the most popular UPS in the world for servers, storage and network power protection. Smart-UPS provides availability and manageability to your network allowing you to focus on business growth instead of business downtime.
Trusted to protect critical data and equipment from power problems by supplying clean and reliable network-grade power. Smart-UPS' patented green mode provides extremely high efficiency at low, medium and high load levels making them ideal for multi-core or virtualized servers that have varying load consumption all while saving utility costs.
Managed outlet groups allow segmented load control to power on or off your equipment in series as well as load shedding to preserve battery power for critical connected equipment or reboot a hung device without impacting other equipment. Available in a variety of form factors (tower, rack mount, rack/tower convertible) there is a model for every application and budget.
| Technology: | Smart-UPS |
| Rating: | 750 / 1000 / 1500VA |
| Voltage: | 230Vac |
| Configuration: | Tower |
Technical Specifications
Output
| Output Power Capacity | 700 Watts / 1.0kVA |
| Max Configurable Power (watts) | 700 Watts / 1.0kVA |
| Nominal Output Voltage | 230V |
| Output Voltage Note | Configurable for 220 : 230 or 240 nominal output voltage |
| Output Voltage Distortion | Less than 5% at full load |
| Output Frequency (sync to mains) | 50/60 Hz +/- 3Hz Sync to mains |
| Other Output Voltages | 220, 240 |
| Topology | Line Interactive |
| Waveform Type | Sinewave |

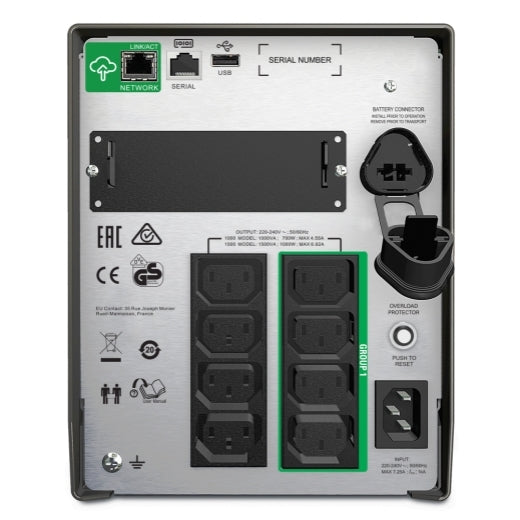

| Output Connections |
(8) IEC 320 C13 (Battery Backup) (2) IEC Jumpers (Battery Backup) |
Input
| Nominal Input Voltage | 230V |
| Input Frequency | 50/60 Hz +/- 3Hz (auto sensing) |
| Input Connections | IEC-320 C14 |
| Cord Length | 1.83 meters |
| Input Voltage Range for Main Operations | 151 - 302V Adjustable, 160-286V |
Batteries & Runtime
| Battery Type | Lead-Acid battery |
| Typical Recharge Time | 3 hour(s) |
| Replacement Battery | RBC6 |
| Expected Battery Life (years) | 3 - 5 |
| RBC Quantity | 1 |
Communications & Management
| Interface Port(s) | SmartSlot, USB |
| Control Panel | Multi-function LCD status and control console |
| Audible Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| Emergency Power Off (EPO) | Optional |
| Available SmartSlot Interface Quantity | 1 |
Surge Protection and Filtering
| Surge Energy Rating | 459 Joules |
| Filtering | Full time multi-pole noise filtering : 0.3% IEE surge let-through : zero clamping response time : meets UL 1449 |
Physical
| Height | 21.9 cm |
| Width | 17.1 cm |
| Depth | 43.9 cm |
| Weight | 19.4 kg |
| Colour | Black |
