APC by Schneider Electric

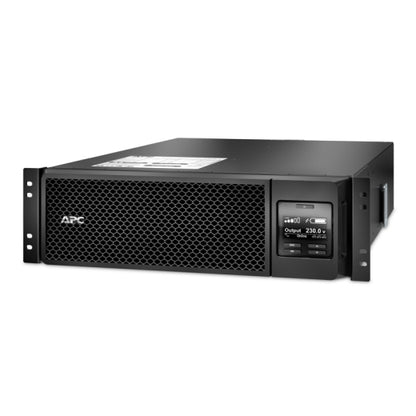

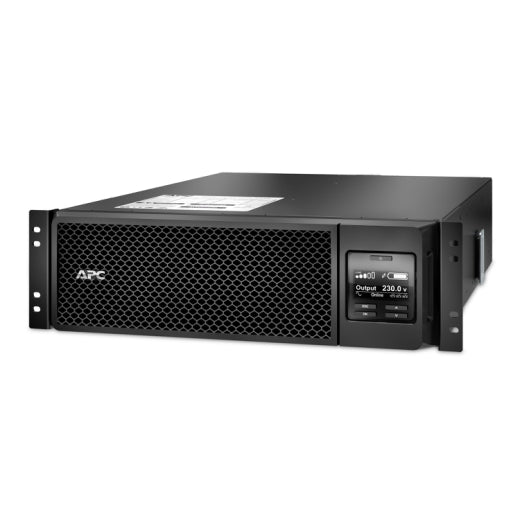

APC Smart UPS (SRT) 5000VA Rack Mount

APC Smart UPS (SRT) 5000VA Rack Mount

SRT5KRMXLI
Regular price $8,510.00 AUD
Regular price Sale price $8,510.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
Product Description

Ideal for protecting: Network Devices, Servers, Switches, Storage Devices, Computers and peripherals, POS Equipment

APC Smart UPS (SRT) 5000VA Rack Mount provides high density, double conversion, online power protection for servers, voice/data networks, medical labs and light industrial applications. The Smart-UPS Online is capable of supporting loads from 2.2kVa - 10kVa in a rack/tower convertible chassis. The 6kVA, 8kVa and 10kVa models feature unity output power factor enabling them to support power hungry blade servers or heavily loaded equipment racks. When business critical systems require runtime in hours, not minutes, Smart-UPS Online can be configured with multiple battery packs to meet agressive runtime demands.

The included PowerChute Network Shutdown management software provides unattended graceful shutdown of network operating systems. Models 5kVa to 10kVa include an integrated network management card for remote management. The entire Smart-UPS Online family provides vale to customers with demanding power conditions, including a very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.

Technology: Smart-UPS Online
Rating: 2200 / 3000 / 5000 / 10000VA
Voltage: 230Vac
Configuration: Tower and Rack Mount
SNMP Card: Network Management Card 2



Technical Specifications

Output

Max Configurable Power (watts) 4.5 KWatts / 5.0kVA
Output Voltage Distortion Less than 2%
Output Frequency (sync to mains) 50/60 Hz +/- 3 Hz
Other Output Voltages 220, 240V
Load Crest Factor 3 : 1
Topology Double Conversion Online
Waveform Type Sinewave
Bypass Internal Bypass (Automatic and Manual)

Input

Input Frequency 40 - 70 Hz (auto sensing)
Input Voltage Range for Mains 100 - 275 Adjustable (half load), 160- 275V
Other Input Voltages 220V, 240V

Batteries & Runtime

Battery Type Lead-Acid battery
Typical Recharge Time 1.5hour(s)
Nominal Battery Voltage 192V
Replacement Battery APCRBC140
Expected Battery Life (years) 3 - 5
RBC Quantity 1
Extendable Run Time 1

Communications & Management

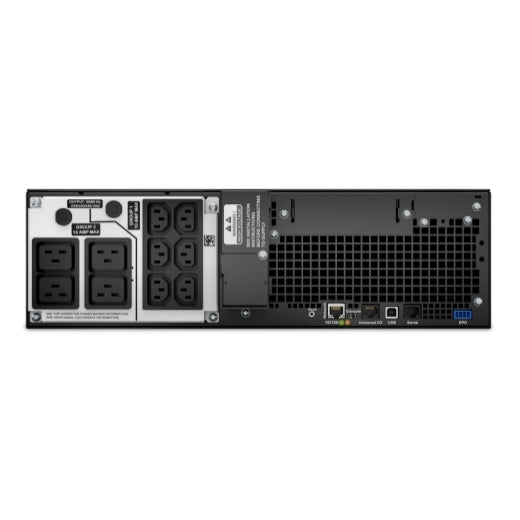

Interface Port(s) RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB
Control Panel Multi-function LCD status and control console
Audible Alarm Audible and visible alarms prioritzed by severity
Emergency Power Off (EPO) Yes
Available SmartSlot Interface Quantity 1

Surge Protection and Filtering

Surge Energy Rating 480 Joules

Physical

Height 13.0cm
Width 43.2 cm
Depth 71.94 cm
Weight 54.43 kg
Colour Black
