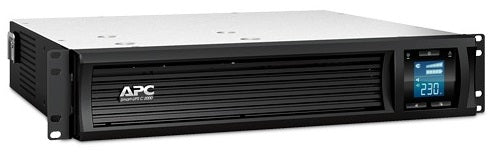

APC Smart UPS C 1000VA 2U Rack Mount with Smart Connect

Technology: Smart-UPS C

Rating: 1000 / 1500 / 2000 / 3000VA

Voltage: 230Vac

Configuration: Tower and Rack Mount

SNMP Card: Does not accept Network Card

Output

• Output Power Capacity: 600 watts / 1.0kVA
• Max Configurable Power (watts): 600 watts / 1.0kVA
• Nominal Output Voltage: 230V
• Output Voltage Distortion: Less than 5% at full load
• Output Frequency (sync to mains): 57 - 63 Hz for 60 Hz nominal
• Topology: Line Interactive
• Waveform Type: Sinewave

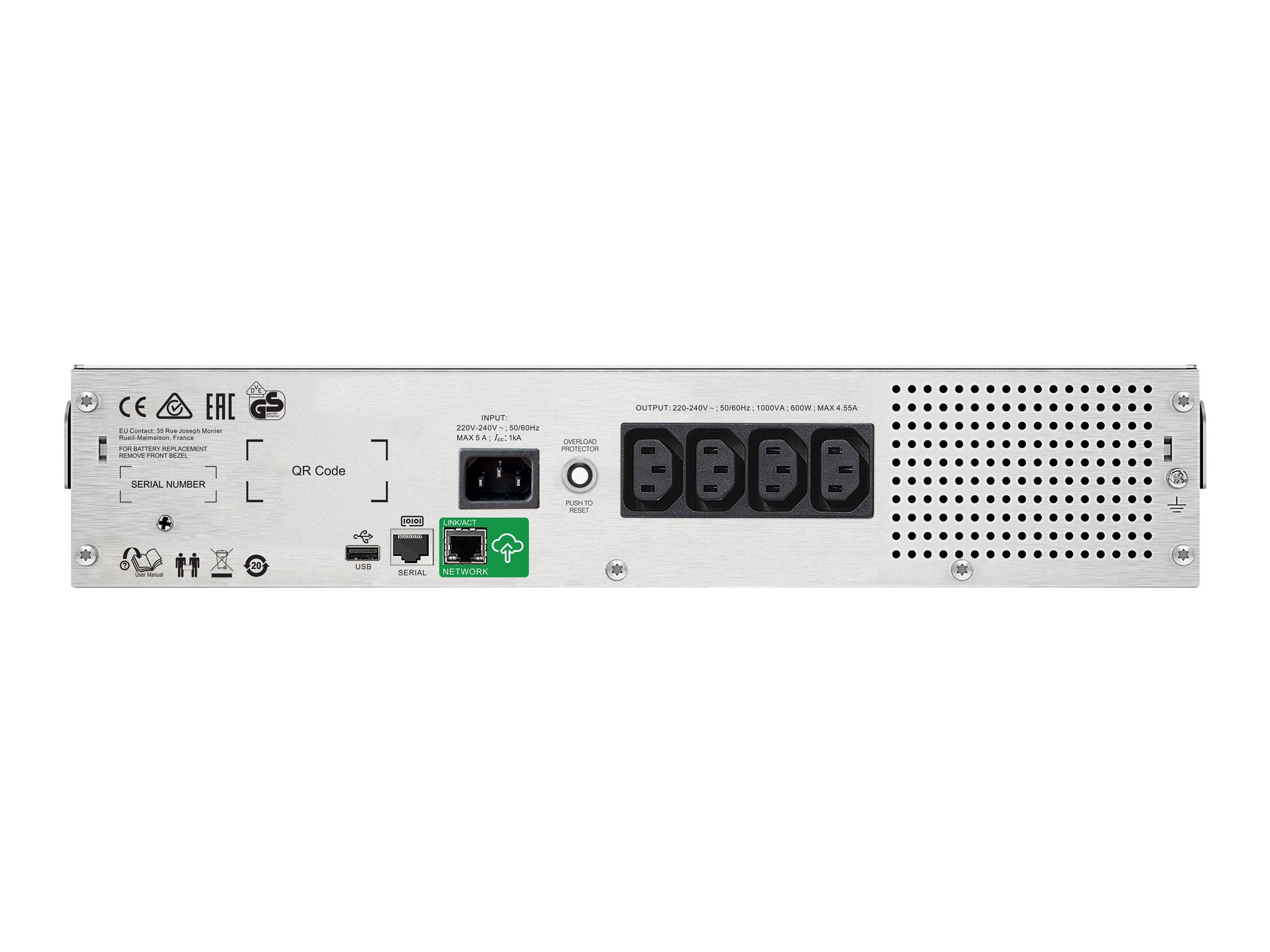

• Output Connections:

(4) IEC 320 C13 (Battery Backup)

(2) IEC Jumpers (Battery Backup)

• Transfer Time: 2ms typical

Input

• Nominal Input Voltage: 230V
• Input Frequency: 50/60 Hz +/- 3Hz (auto sensing)
• Input Connections: IEC-320 C14
• Input Voltage Range for Mains: 180 - 287V

Batteries & Runtime

• Battery Type: Maintenance-free sealed Lead-Acid battery with suspended electroylte : leakproof
• Typical Recharge Time: 3hour(s)
• Replacement Battery: APCRBC124
• Expected Battery Life (years): 4 - 6
• RBC Quantity: 1

Communications & Management

• Interface Port(s): USB
• Control Panel: Multi-function LCD status and control console
• Audible Alarm: Alarm when on battery : distinctive low battery alarm : configurable delays
• Emergency Power Off (EPO)-

Surge Protection and Filtering

• Surge Energy Rating: 459 Joules
• Filtering: Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1499
