• CyberPower Systems Online S Series 1500VA Double Conversion Tower UPS with LCD
  • CyberPower Systems Online S Series 1500VA Double Conversion Tower UPS with LCD
1 3

CyberPower Systems

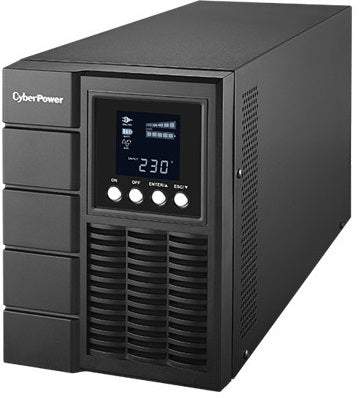

CyberPower Systems Online S Series 1500VA Double Conversion Tower UPS with LCD

OLS1500E

$870.00
$752.99
$870.00
Tax included. Shipping calculated at checkout.

IS THIS UPS RIGHT FOR ME?

BEST FOR - Computers and peripherals, Broadband Modems (internet and TV), IP Telephony Equipment, POS Equipment, Medical Vaccine and Lab Fridges

CyberPower Systems Online S Series 1500VA Double Conversion Tower UPS with LCD is ideal for servers, networking equipment, workstations and other mission critical applications which require pure sine wave power. Featuring Online Double Conversion Topology and Zero Transfer Time, the UPS provides consistent and seamless power to critical loads.

Numerous engineering excellences showcase in this enterprise level application including Economy Mode, Smart Battery Management and External Battery Module compatible, which further enhance its overall performance and capability. The placement-wise design could be configured in either Tower (T) or Rackmount (RM) form with the attached stands and skids to make the most of your workspace.

The optional SNMP/HTTP Remote Management Capability enables remote management and control of the system through standard web browser. Together with the PowerPanel Business Edition management software, the UPS can provide administrators comprehensive network power management including unattended-shutdown, event logging, reporting, and notifications.

Download User Manual

Runtime Chart

Technical Specifications

Technology: Online S Series

Rating: 1500VA

Voltage: 230Vac

Configuration: Tower or Rackmount

Output

  • Capacity (VA): 1500
  • Capacity (Watts): 1350
  • On Battery Waveform: Pure Sinewave
  • On Battery Voltage (Vac): 208 +/- 1%, 220 +/- 1%, 230 +/- 1%, 240 +/- 1%
  • On Battery Frequency (Hz): 50/60 +/- 0.5%

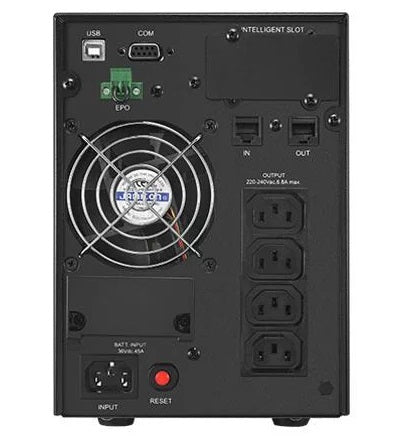

  • Outlet Type: (4) x IEC C13
  • Internal Bypass: Automatic Bypass, Manual Bypass
  • Typical Transfer Time (ms): 0

Input

  • Nominal Input Voltage (Vac): 230
  • Input Voltage Range (Vac): 160 - 300
  • Input Frequency (Hz): 50/60 +/- 10
  • Input Frequency Detection: Auto Sensing
  • Rated Input Current (A): 6.5

Batteries & Runtime

  • Runtime at Half Load (min): 14
  • Runtime at Full Load (min): 4
  • Typical Recharge Time (Hours): 5
  • Battery Type: Sealed Lead-Acid
  • Single Battery Capacity (AH): 12V 7AH
  • User Replaceable: No
  • Extended Battery Module (EBM): BPSE36V45A
  • Max EBM Quantity (pcs): 3
Dimensions

Height - 31.3 cm
Width - 24.1 cm
Depth - 51.0 cm
Weight - 16.8 kg
Warranty

Product Warranty Period: 2 Years Battery Warranty Period: 2 Years
